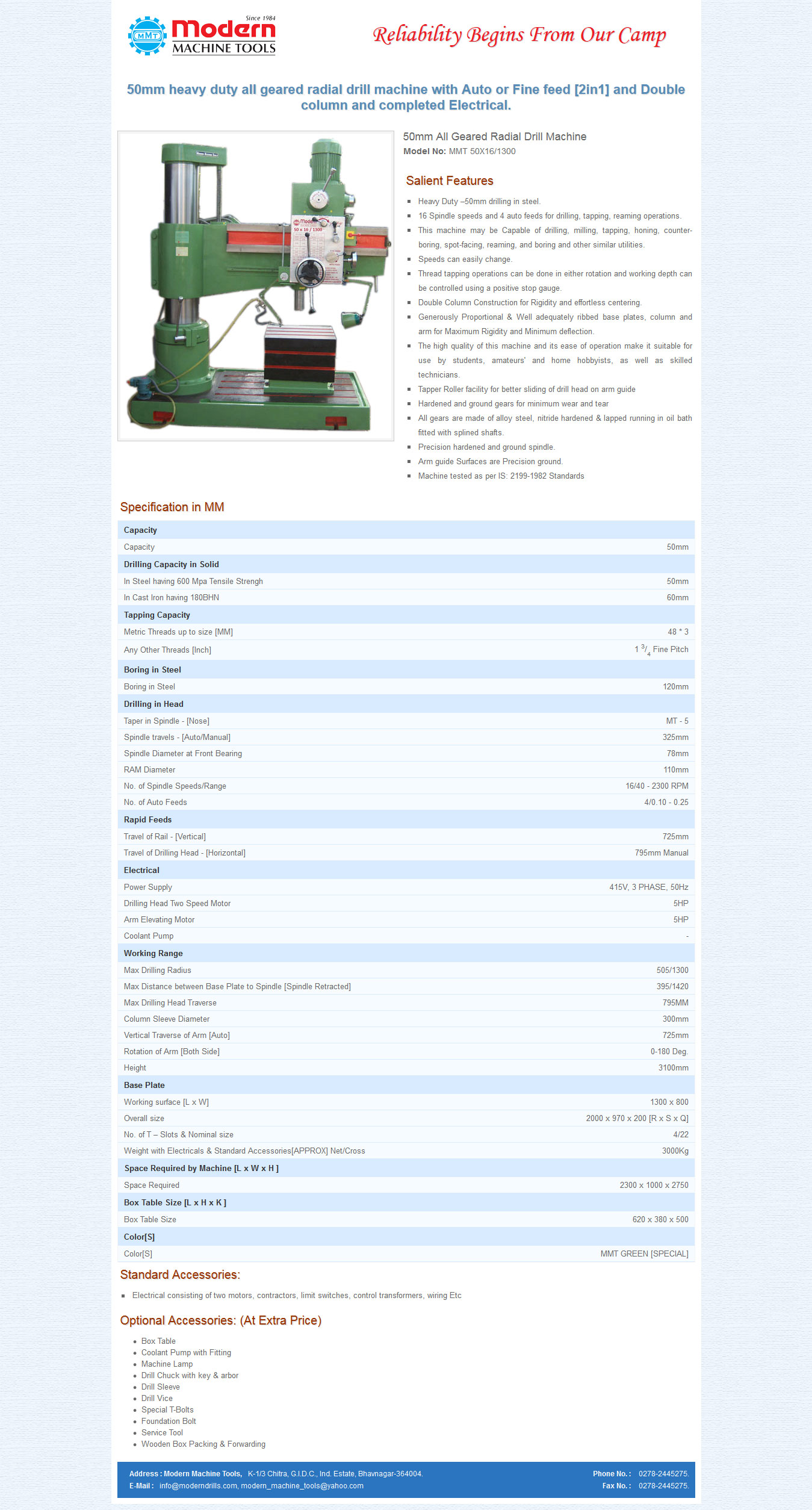

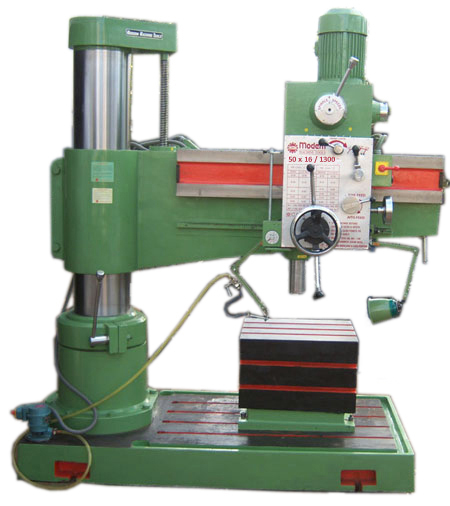

50mm heavy duty all geared radial drill machine with Auto or Fine feed [2in1] and Double column and completed Electrical.
Salient Features of the machine are as under:
- Heavy Duty –50mm drilling in steel.
- 16 Spindle speeds and 4 auto feeds for drilling, tapping, reaming operations.
- This machine may be Capable of drilling, milling, tapping, honing, counter-boring, spot-facing, reaming, and boring and other similar utilities.
- Speeds can easily change.
- Thread tapping operations can be done in either rotation and working depth can be controlled using a positive stop gauge.
- Double Column Construction for Rigidity and effortless centering.
- Generously Proportional & Well adequately ribbed base plates, column and arm for Maximum Rigidity and Minimum deflection.
- The high quality of this machine and its ease of operation make it suitable for use by students, amateurs' and home hobbyists, as well as skilled technicians.
- Tapper Roller facility for better sliding of drill head on arm guide
- Hardened and ground gears for minimum wear and tear
- All gears are made of alloy steel, nitride hardened & lapped running in oil bath fitted with splined shafts.
- Precision hardened and ground spindle.
- Arm guide Surfaces are Precision ground.
- Machine tested as per IS: 2199-1982 Standards
Specification in MM
- Capacity50mm
- In Steel having 600 Mpa Tensile Strengh50mm
- In Cast Iron having 180BHN60mm
- Metric Threads up to size [MM]48 * 3
- Any Other Threads [Inch]1 3/4 Fine Pitch
- Boring in Steel120mm
- Taper in Spindle - [Nose]MT - 5
- Spindle travels - [Auto/Manual]325mm
- Spindle Diameter at Front Bearing78mm
- RAM Diameter110mm
- No. of Spindle Speeds/Range16/40 - 2300 RPM
- No. of Auto Feeds4/0.10 - 0.25
- Travel of Rail - [Vertical]725mm
- Travel of Drilling Head - [Horizontal]795 Manual
- Power Supply415V, 3 PHASE, 50Hz
- Drilling Head Two Speed Motor5HP
- Arm Elevating Motor2HP
- Coolant Pump-
- Max Drilling Radius505/1300
- Max Distance between Base Plate to Spindle [Spindle Retracted]395/1420
- Max Drilling Head Traverse795MM
- Column Sleeve Diameter300mm
- Vertical Traverse of Arm [Auto]725mm
- Rotation of Arm [Both Side]0-180 Deg.
- Height3100mm
- Working surface [L x W]1300 x 800
- Overall size2000 x 970 x 200 [R x S x Q]
- No. of T – Slots & Nominal size4/22
- Weight with Electricals & Standard Accessories[APPROX] Net/Cross3000Kg
- Space Required2300 x 1000 x 2750
- Box Table Size620 x 380 x 500
- Color[S]MMT GREEN [SPECIAL]
Standard Accessories
- Electrical consisting of two motors, contractors, limit switches, control transformers, wiring Etc
Optional Accessories: (At Extra Price)
- Box Table
- Coolant Pump with Fitting
- Machine Lamp
- Drill Chuck with key & arbor
- Drill Sleeve
- Drill Vice
- Special T-Bolts
- Foundation Bolt
- Service Tool
- Wooden Box Packing & Forwarding
