  • 75 mm - 65 mm - 50mm Heavy Duty All Geared Radial Drill Machine

    75 mm - 65 mm - 50mm heavy duty all geared radial drill machine with Auto or Fine feed [2in1] and Double column and completed Electrical.

  • 12mm - 06mm High Speed Tapping Machine

    'MMT' Brand 40mm Heavy Duty Piller Type Drill Machine with Fine Feed & Double Gear and 8 Speed with 255mm Traveling & Without Electrical.

  • 40mm Heavy Duty All Geared Redial Drill Machine With Auto Feed, Auto Lift And Double Column And With Electrical

    'MMT' Brand 40mm Heavy Duty Piller Type Drill Machine with Fine Feed & Double Gear and 8 Speed with 255mm Traveling & Without Electrical.

  • 38mm Universal Redial Drill Machine With Auto Feed With 8 Speed Column Pully Type Double Greared

    'MMT' Brand 40mm Heavy Duty Piller Type Drill Machine with Fine Feed & Double Gear and 8 Speed with 255mm Traveling & Without Electrical.

  • 40mm Heavy Duty Pillar Type Machine With Fine Feed And Double Greared(Back Greared Type & Steel Greared) & 8 Speeds, And With 255mm Traveling And Without Electrical

    'MMT' Brand 38mm Heavy Duty Piller Type Drill Machine with Fine Feed & Double Greared and 8 Speed with 255mm Traveling & Without Electrical.

Our vision is to become leader in manufacturing and supply of all types of quality drilling machines at affordable price with complete satisfaction to the customers.

Our Product

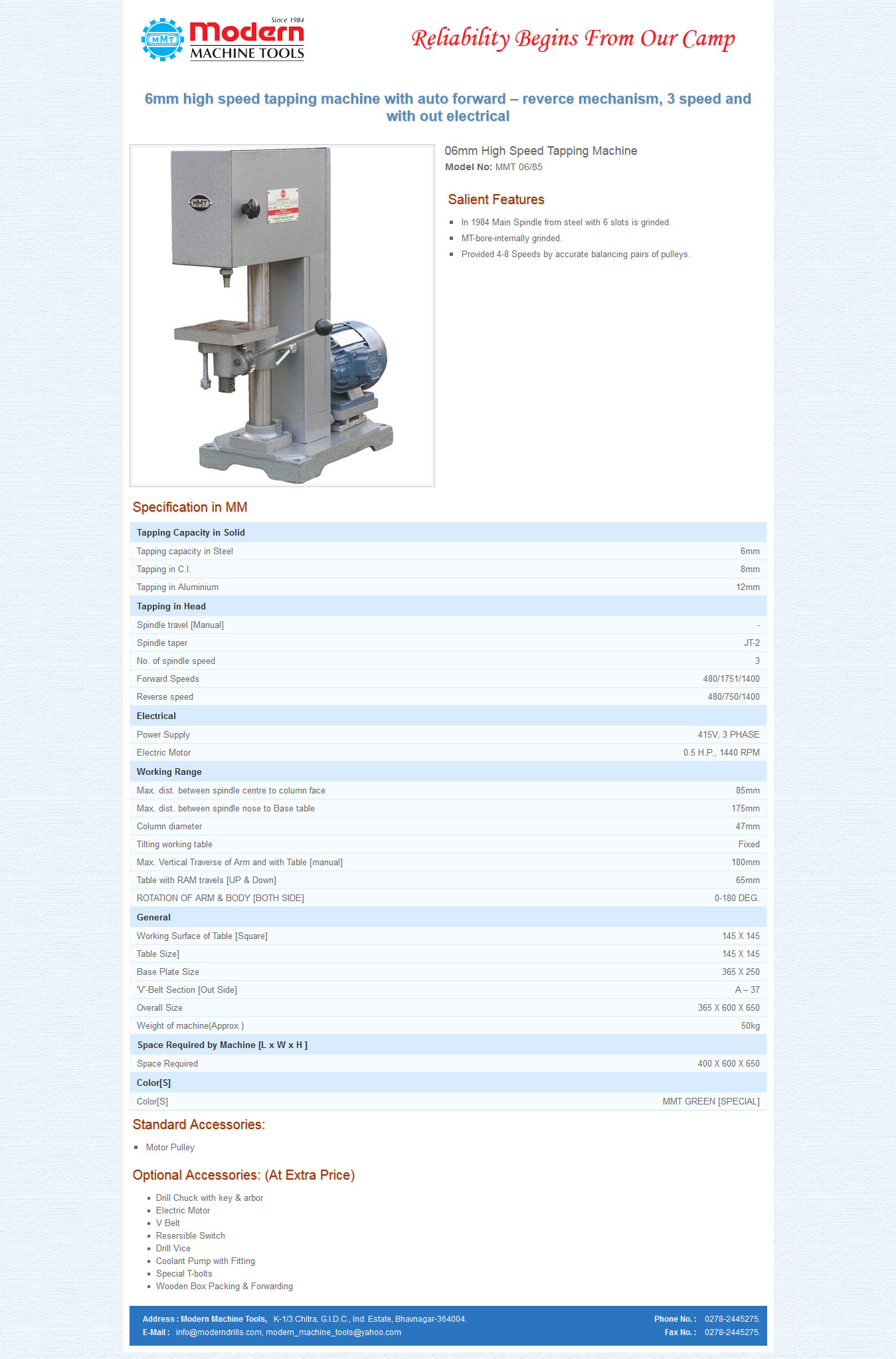

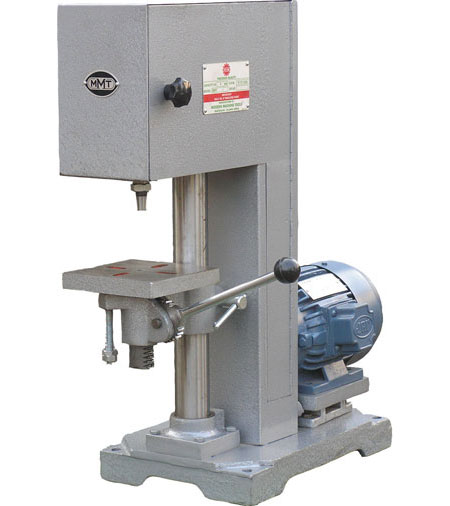

6mm high speed tapping machine with auto forward – reverce mechanism, 3 speed and with out electrical

Loading...

Model No: MMT 06/85

Features:
  • In 1984 Main Spindle from steel with 6 slots is grinded.
  • MT-bore-internally grinded.
  • Provided 4-8 Speeds by accurate balancing pairs of pulleys.
Specification in MM
  • Tapping capacity in Steel6mm
  • Tapping in C.I.8mm
  • Tapping in Aluminium12mm
  • Spindle travel [Manual]-
  • Spindle taperJT-2
  • No. of spindle speed3
  • Forward Speeds480/1751/1400
  • Reverse speed480/750/1400
  • Power Supply415V, 3 PHASE
  • Electric Motor0.5 HP, 1440 RPM
  • Max. dist. between spindle centre to column face85mm
  • Max. dist. between spindle nose to working table175mm
  • Column diameter47mm
  • Tilting working tableFixed
  • Max. Vertical Traverse of Arm and with Table [manual]180mm
  • Table with RAM travels [UP & Down]]65mm
  • ROTATION OF ARM & BODY [BOTH SIDE]0-180 DEG.
  • Working Surface of Table [Square]145 X 145
  • Table Size145 X 145
  • Base Plate Size365 X 250
  • 'V'-Belt Section [Out Side]A – 37
  • Overall Size365 X 600 X 650
  • Weight of machine(Approx.)50kg
  • Space Required400 X 600 X 650
  • Color[S]MMT HAMMERTONE SILVER
Standard Accessories:
  • Motor Pulley
Optional Accessories: (At Extra Price)
  • Drill Chuck with key & arbor
  • Electric Motor
  • V Belt
  • Resersible Switch
  • Drill Vice
  • Coolant Pump with Fitting
  • Special T-bolts
  • Wooden Box Packing & Forwarding
